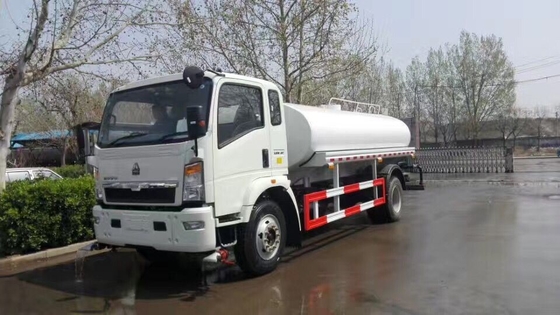

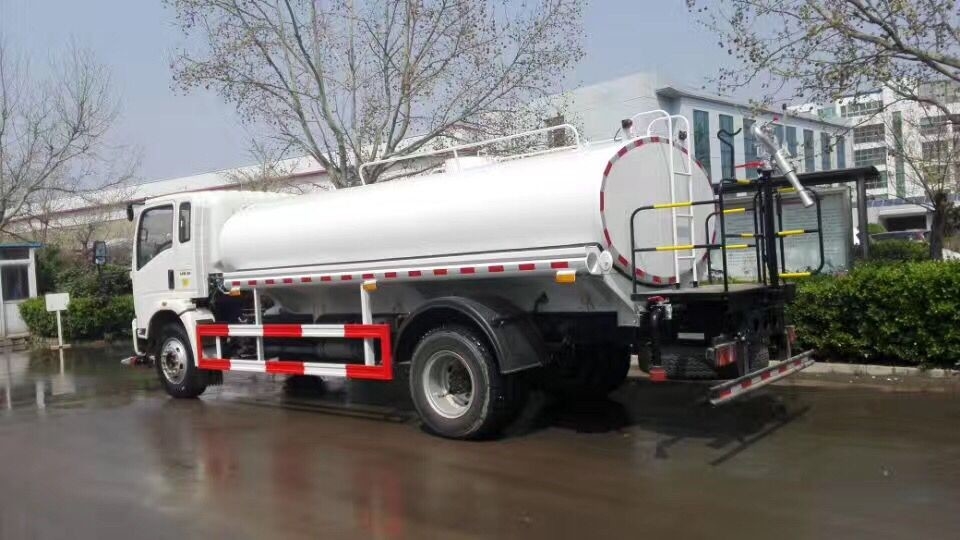

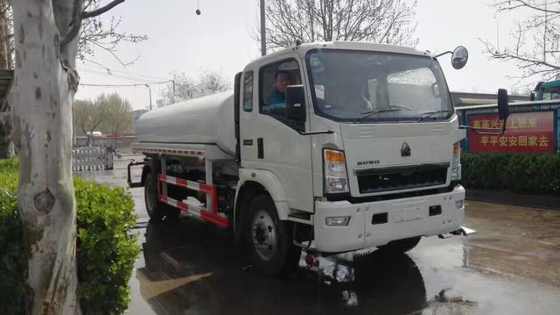

제품 상세 정보:
|
| 드라이브 모드: | 4x2 | 상태: | 새롭습니다 |
|---|---|---|---|
| 브랜드: | Sinotruk Howo | 재료: | Q345 |
| 능력: | 8000L | ||

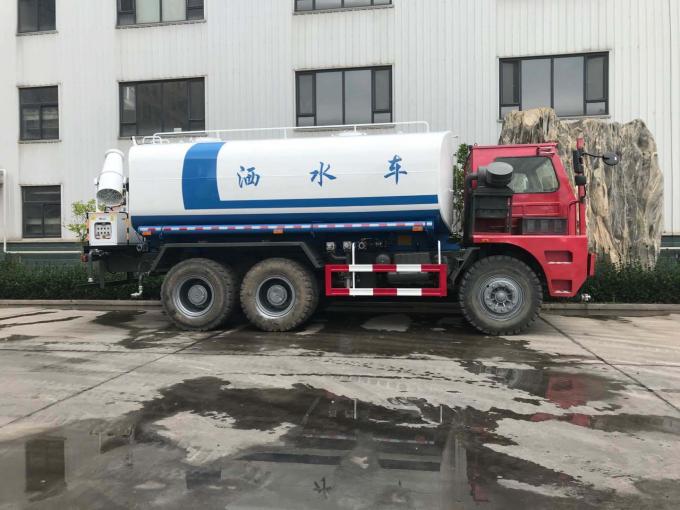

| 강조하다: | 8000L Water Tank Truck,Sinotruk 4x2 Water Tank Truck,Euro 3 off road water truck |
||
| Vehicle parameters | |||
| Vehicle Model | WH5070TS38 | Vehicle Brand | DONGFENG |
| Overall dimensions | 7130×2200×2520mm | Curb weight | 6050kg |
| Dust tank volume | 5000L | Water tank volume | 2500L |
| Chassis parameters | ||||
| Chassis model | EQ1090T9ADJ3AC | Chassis brand | DONGFENG | |
| Overall dimensions | 6740X2100X2370mm | Wheel base | 3800mm | |
| Front/rear wheel track | 1740/1610mm | Front/rear suspension | 1130/1810mm | |
| Approach/departure angle | 20/14° | Maximum speed | 103km/h | |
| Chassis Manufacturer | Dongfeng Automobile Co.,Ltd | |||
| Cab | Configuration | Cab width: 2025mm,Single row cab,allowable 3 passengers,power-assisted steering,Camel brand battery: 24V/90AH,Pneumatic brake system, Air conditioner | ||
| Color | White,other color is optional | |||
| Engine | Model | YC4D120-33 | ||
| Emission | Euro 3 | |||
| Type | 4-stroke,water-cooled, turbocharging,diesel engine | |||
| Rated power | 90KW/120hp ,rated power speed 2800rpm | |||
| Displacement | 4214ml | |||
| Bore x stroke | 108x115mm | |||
| Manufacturer | Guangxi Yuchai Machinery Group Co.,Ltd | |||
| Tire | Size | 7.50R16 Steel wire | ||
| Number | 6+1 nos | |||
| Frame | 192mm | |||
| Front axle | 3.0T | |||
| Rear axle | 5.5T | |||
| Drive form | 4X2 | |||
| Rated voltage | 24V,DC | |||
| Transmissions | 5 speed forward 1 reverse. | |||
| Steering wheel | Left hand drive | |||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | ||||
| Road sweeper structure parameters | ||||
| Dust tank volume | 5000L | Water tank volume | 2500L | |
| Sweep width | 3200m | Cleaning speed | 3-20km/h | |
| Cleaning ability | 9000-60000 m2/h | Cleaning efficiency | 98% | |
| Maximum suction particle | Φ120mm | Min. clearance of suction nozzle | 200mm | |
| Unloading angle | 45° | Unloading height | 970mm | |
| Material of dustbin | Stainless steel | Color and Logo | Optional | |
| Standard configuration | Dongfeng 85 HP engine ,4 sweeping plates, imported motors, import control switches, joint electromagnetic valve groups, stepless speed change automatic clutch, maintenance free centrifugal fan, garbage box lifting dump, tail LED arrow light, hand pump emergency system. | |||
| Optional | 1, Sprinkler function.+156USD 2, Self cleaning function inside the box.+390USD 3, water tank and dustbin are made of stainless steel.+460USD |
|||
Factory Show:
1. Factory direct supply: reliable quality and fast delivery;
2. Warranty; from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
3. Tracking service: lifelong
4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.
FAQ:
Q. What is your payment terms ?
A: 30% TT before produce and 70% TT before shipment . or 100% LC at sight ( irrevocable ).
Q. How long time you could delivery goods to customer ?
A : Generally 25 days of working , after we receive your deposits .
Q:How you can ensure you have deliveried goods to customers ?
A: We will give you the complete shipping information details for you confirmed .
Q. How you could supply customers after sales services ?
A: We will reply you at first time and help you resolve the problems within 24 hours . If it really need us to your local , we will send your professional person to your local to help you resolve problems without any hesitation , supply you all-around after-sales services including machine maintenance and operation and technical training services etc .
