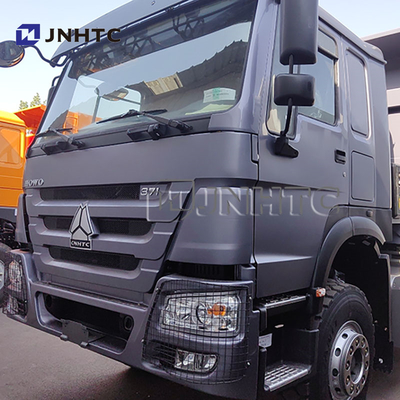

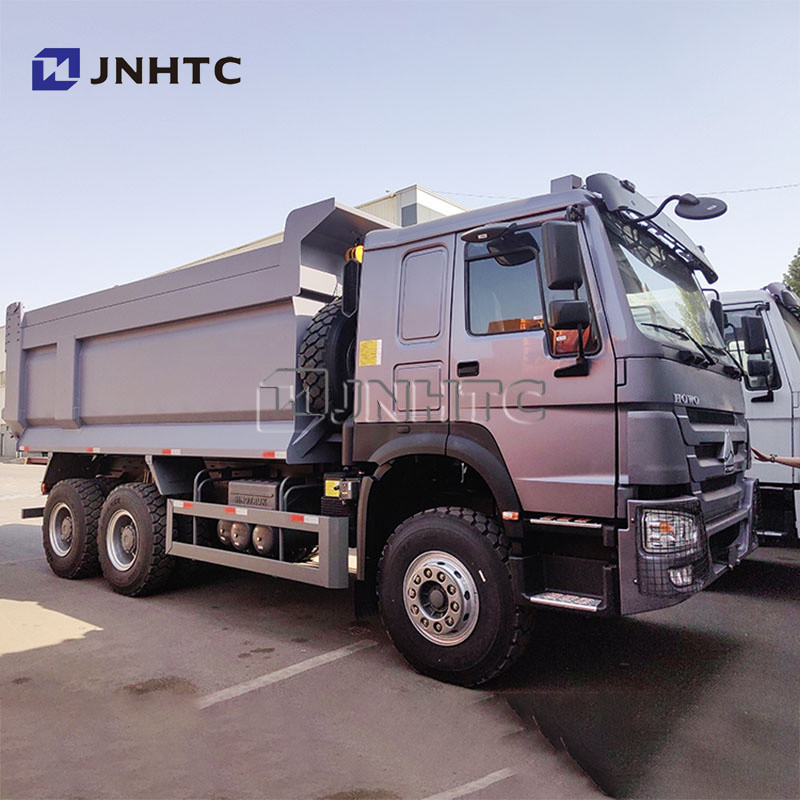

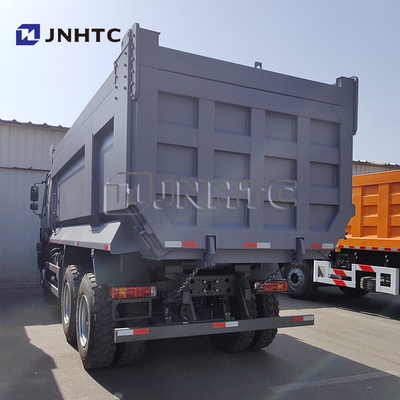

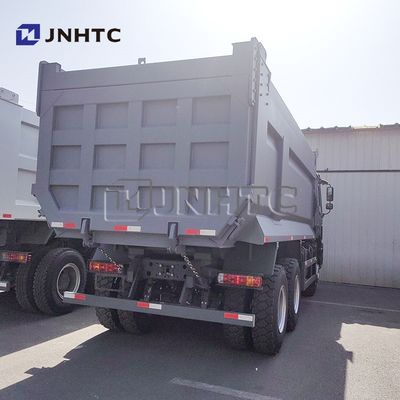

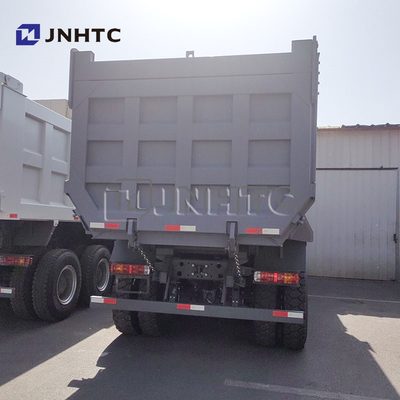

시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭

시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭
시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭 시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭 시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭 시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭 시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭 시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭

큰 이미지 :  시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭

제품 상세 정보:
Place of Origin: China
브랜드 이름: Howo
인증: ISO CCC
모델 번호: jnhtc
결제 및 배송 조건:
최소 주문 수량: 1 단위
가격: USD23100-25410
Packaging Details: nude
Delivery Time: 45 Work days
Payment Terms: L/C, T/T
공급 능력: 1주일에 50 유닛

시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭

설명
Horsepower: 351 - 450hp Emission Standard: Euro 2-6
연료 탱크: 400L 드라이브 휠: 6x4
Segement: Heavy truck Tyres: 12.00R20
Capacity (Load): 21 - 30T
강조하다:

371마력 덤프 트럭

,

U 모양의 버킷 덤프 트럭

,

15-20 톤 덤프 트럭

Sinotruk Howo 371hp 15-20 Ton Diesel U-shaped Bucket Dump Trucks for Sale



Model
ZZ3257V3847B1
Driver's Cab
HW76 extended cab, with one sleeper berth ,with air conditioner, air seat for driver. MP3
Engine
Model: WP12.400E201, Euro II emission standard, 4 stroke injection diesel engine, 6
cylinder in-line with water cooling, turbo-charging & inter cooling.
Maximum output: 400PS (294kW) at 2100 rpm
Maximum torque: 2060Nm at 1200-1500rpm
Bore: 126mm Stroke: 155mm
Displacement: 11.596L
Brand: Weichai
Steering
Model: BOSCH
Hydraulic steering with power assistance
Left hand driving
Clutch
Φ430 Pull-type diaphragm spring clutch
Transmission
Model: HW19710, 10 forward and 2 reverse
Manual type
With transmission power take-off HW70
Max Torque: 1900N·M
Front Axle
Model: HF9
Drum brake system
Rated loading capacity :9000kgs
Rear Axle
Model: MCP16ZG
Capacity: 16000kgs
Drum braking steering axle,self-adjusting arm
Speed ratio:
Wheelbase
3800+1350 mm
Brake System
Type :Wabco braking system
ABS 4S/4M
Engine exhaust valve brake
Oil Tanker
300L aluminum alloy fuel tank
Tires
Types: 12.00R20 radial tire; 18PR
10 pcs, plus one pc spare tire
Bumper
Metal bumper
Dump body
5600*2300*1500mm, 8mm for bottom and 6 mm for side plate, rectangular box, Chinese brand front lifting cylinder, with integral
fender, headlight cover.
Dimensions in mm
Front wheel track (mm): 2022
Rear wheel track (mm):1830
Overhang(front/rear) (mm):1500/1870
Overall Dimension (mm): 8650*2580*3450
Weight in kg
Dead weight (kg):13500
Gross vehicle weight (kg):25000




A dump truck is a rugged vehicle designed primarily for transporting loose materials such as sand, gravel,

dirt, or debris. It's characterized by its prominent open-box bed, which can be hydraulically raised at the

front end to dump its contents at the desired location. This feature allows for efficient unloading without the

need for manual labor.

Dump trucks are widely used in construction, mining, and agriculture due to their ability to handle large

volumes of material quickly and effectively. They come in various sizes and configurations to suit different

applications and terrain types.

Key components of a dump truck include:

  • Chassis: Provides the structural support and stability necessary for carrying heavy loads.
  • Dump Bed: The large, open-box container where materials are loaded and unloaded.
  • Hydraulic System: Powers the lifting mechanism for raising and lowering the dump bed.
  • Engine: Typically a powerful diesel engine to provide the necessary torque and horsepower for
  • hauling heavy loads.
  • Cab: Where the driver operates the vehicle and controls the dumping mechanism.

Dump trucks are designed to withstand rugged conditions and are equipped with features like reinforced

frames and durable tires to handle rough terrain. They play a crucial role in the efficient movement of

materials on job sites, contributing to increased productivity and operational efficiency in various industries.



시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭 0시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭 1시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭 2시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭 3시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭 4





시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭 5시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭 6시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭 7시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭 8시노트룩 호보 371hp 15-20톤 디젤 U 모양 버킷 덤프 트럭 9
