제품 상세 정보:
|
| 강조하다: | HOWO NX371HP concrete mixer truck,14cbm cement truck with hydraulic pump,China ready mix concrete truck price |
||
|---|---|---|---|

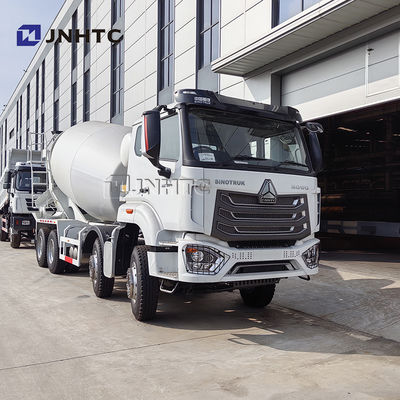

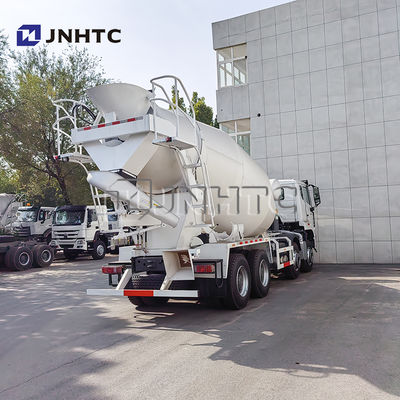

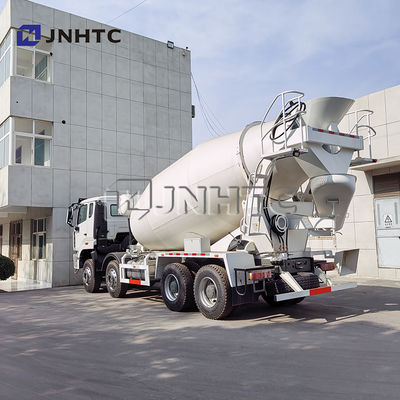

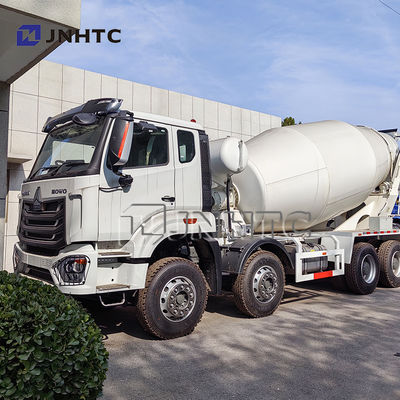

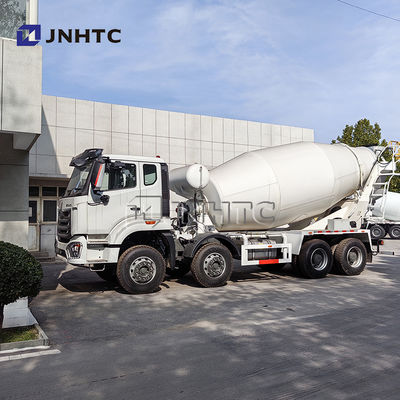

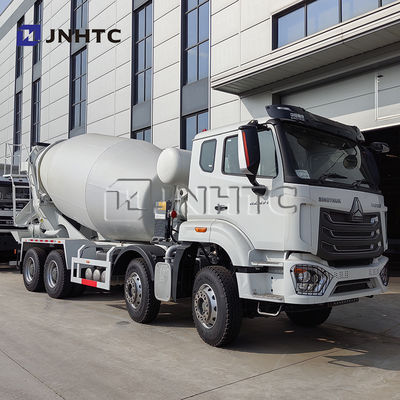

HOWO NX371HP 14cbm Ready Mix Cement Trucks Concrete Mixer China Truck With Hydraulic Pump Price
| Representative vehicle model |
ZZ1257M3 247W |
ZZ1257N3247W | ZZ1257N3641W | ZZ1257S3647W | ZZ1257N3841W |
ZZ1257 N3847W |
|||
| Cab | Model | HW76 | |||||||
| Type |
Extended Cab,single berth,up/down and front/back adjustable wheel, VDO instrumentand control module,double-locking safety belt,exterior sun visor. |
||||||||
| Engine | Model | WD615.87 | WD615.69 | WD615.69 | WD615.47 | WD615.87 | WD615.69 | ||
| Rated Power Kw/rpm | 213/2200 | 247/2200 | 247/22000 | 273/2200 | 213/2200 | 247/2200 | |||
| Maximum torque Nm/rpm, | 1160/1100-1600 | 1350/1100-1600 | 1460/1100-1600 | 1460/1100-1600 | 1160/1100-1600 |
1350/1100 -1600 |
|||
| Displacement L | 9.726 | ||||||||
| Type | Six cylinders inline,two valve,supercharge intercooler,supercharge postposition | ||||||||
| Clutch |
Φ430diaphragm spring clutch,hydraulic control air assisted.WD615.69, WD615.47 standard430B,WD615.87 standard430C |
||||||||
| Transmission |
SINOTRUK HW series 10 gears transmission,main and auxiliary transmission structure,main transmission with double counter shaft,auxiliary transmission with planetary reduction.WD615.87 HW15710 is standard,WD615.69 and WD615.47 HW19710 is standard. |
||||||||
| Front axle | HF9 drum-type,rated load of 9t | ||||||||
| Drive axle | HC16 double reduction (central reduction+wheel reduction),speed ratio:5.73 4.8 | ||||||||
| Suspension | Front and rear leaf spring suspension,front suspension with shock absorber,transverse stabilizer,rear suspension is disconnected type with transverse stabilizer. | ||||||||
| Steering system | ZF8098 steering gear,ZF steering gear,ZF steering oil pump,system pressure 18MPa | ||||||||
| Braking system | Service brake:dual-circuit air pressure brake;parking brake:spring storage energy without air;auxiliary brake;Engine exhaust braking.Engine EVB is optional,and with ABS and optional auto clearance adjusting arm. | ||||||||
| Electrical system | Voltage:24V;generator:1540W;starter:24V,7.5kw;battery:12V/145AH,2pieces | ||||||||
| Tyre | 12.00R20;12.00R24;12.00-24 Tyre is optional | ||||||||
| Tank volume L | 300 | ||||||||
|
Kerb weight(vehicle/ chassis) kg |
12800/8650 | 12800/8650 | 13100/8800 | 13100/8800 | 13220/8830 | 13220/8830 | |||
|
Griss mass(vehicle/ chassis) kg |
25000 | 25000 | 25000 | 25000 | 25000 | 2500 | |||
| Rated losd kg | 12070/16220 | 12070/16220 | 11770/16070 | 11770/16070 | 11650/16040 | 11650/16040 | |||
|
External dimensions(length* width*height)mm |
8204* 2496*3850 |
8204*2496*3850 | 8715*2496*2958 | 8715*2496*2958 |
9040* 2496*2958 |
8560* 2496*2957 |
|||
|
Chassis overall dimension (length*width* height)mm |
7350*2496*2958 | 7350*2496*2958 | 7775*2496*2958 | 7775*2496*2958 | 8075*2496*2958 |
8075* 2496*2957 |
|||
| Wheelbase mm | 3225+1350 | 3225+350 | 3625+1350 | 3625+1350 | 3825+1350 | 3825+1350 | |||
|
Front/rear overhang(vehicle/ chassis) mm |
1500/(2129/1275) | 1500/(2129/1275) | 1500/(2240/1300) | 1500/(2240/1300) | 1500/(2365/1400) |
1500/( 2365/1400) |
|||
|
Wheel track (front/rear)m |
2022/1850 | 2022/1850 | 2022/1850 | 2022/1850 | 2022/1850 | 2022/1850 | |||
| Minimum ground clearance mm | 314 | 314 | 314 | 314 | 314 | 314 | |||
| Approach/departure angle(vehicle/chassis) ° | 16/(32/36) | 16/(32/36) | 16(26/35) | 16/(26/35) | 16/(26/33) | 16/(24/33) | |||
| Maximum speed km/h | 91 | 91 | 91 | 91 | 91 | 91 | |||
| Max climbing ability % | 20 | 20 | 20 | 20 | 20 | 20 | |||
| Minimum turning diameter m | 15 | 15 | 16.3 | 16.3 | 17 | 17 | |||
| Mixer tank effective volume m³ | 6;7;8 | 6;7;8 | 9 | 9 | 10 | 10 | |||
| Remark | WD615.47 is optional | ||||||||
